Product Details

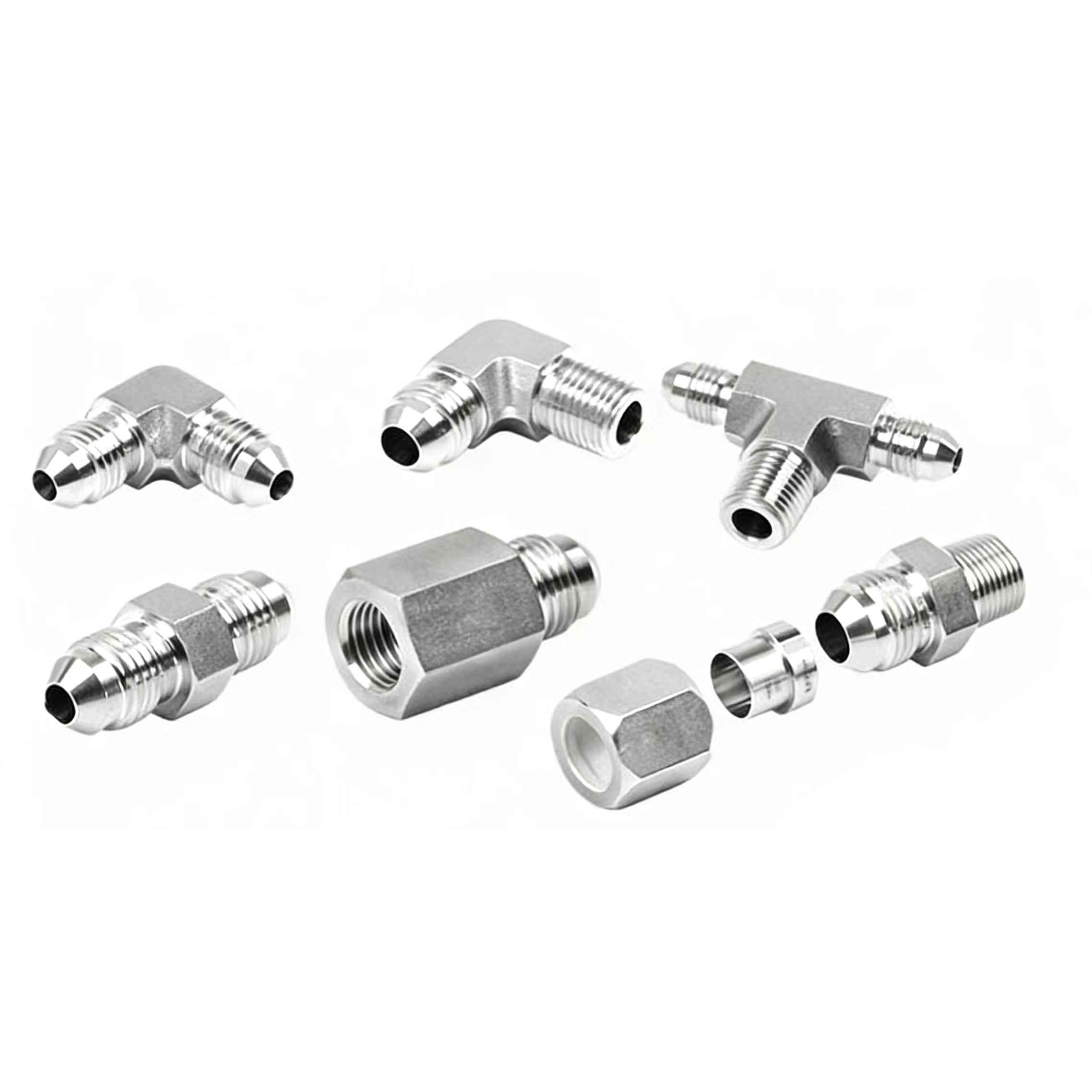

- Product Name:37° Flared Tube Fittings
- Material:316 Stainless Steel,Aluminum,Brass,Carbon Steel
- Design:Match SAE J514 Standard
- Size:Size range from 1/8″ to 2″ and 3 to 50 mm
- Thread Type: NPT or Unified (SAE)
- Features:
- Designed and manufactured in compliance with SAE J514
- Stainless steel nut threads are silver-plated to minimize the friction with the body threads
- Fittings are easy to disconnect and retighten
- The hardened threads with smooth surface finish avoid galling and help to extend the fitting service life
- Radius junction design for elbows provides smooth flow path
- Every fitting is marked with size, material and heat number
- All male threads are protected by plastic caps
Installation Instructions
- Cut the tube to the proper length.
- Insert the tube into the nut and sleeve.
- Form the flare to 37° dimension according to SAE J533. See flaring operation.
- Finger-tighten the nut.
- Tighten the nut 1/4 turn with wrench while holding steady the body of the fitting
Cautions:
Do not loosen or tighten fittings when system is pressurized.
Please use proper thread sealants on tapered pipe threads.
