Product Details

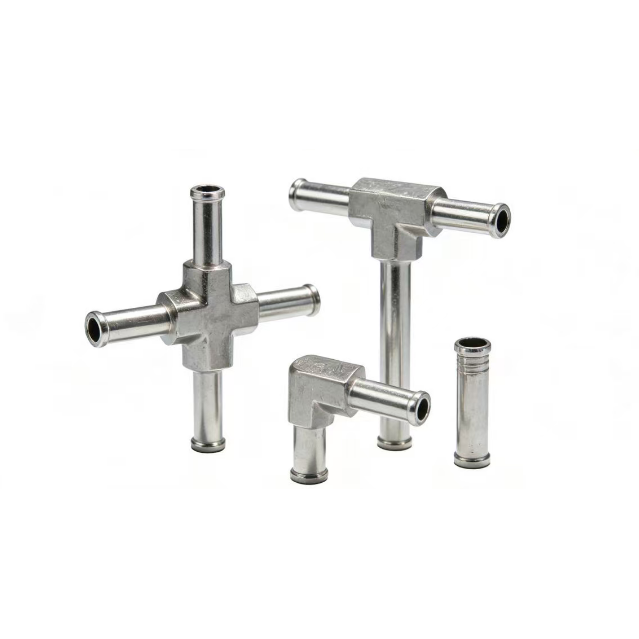

- Product Name:ATB Series Automatic Tube Butt Weld Fittings
- Material:316L
- Design: ASME B31.1, ASME B31.3
- Size:Sizes range from 1/4″ to 1″ and 6 mm to 18
- VariousTypes: Unions,Elbows,Tees,Cross
- Features:
- Extended tube design for LTBseries tube butt weld fittings with locating ring
- Machined from forging blanks except for straight configurations
- Sizes range from 1/4″ to 1″ and 6 mm to 18 mm
- Precision machined diameter to match tube diameter
- Square, burr-free tube weld ends to enhance alignment
- Manual or automatic welding equipment applicable
- Tube wall uniformity to promote weld repeatability
- Each fitting marked with brand, material and tracing ID
Application:
Semiconductor & Microelectronics
- Ultra-high-purity gas delivery systems (specialty gas systems)
- Chemical distribution systems (CMP, etchants, etc.)
- Vacuum lines and exhaust systems
Biopharmaceuticals & Medical Devices
- Water for Injection (WFI) distribution systems
- Pure steam and purified water piping
- Bioreactor and fermenter connection piping
- Sterile process piping systems
High-End Food & Beverage Applications
- Aseptic filling production lines
- Process piping for high-value beverages (e.g., amino acid drinks, functional beverages)
- Critical connections in CIP/SIP systems
- Nuclear Power & Critical Industries
- Nuclear-grade instrument piping
- High-reliability hydraulic systems
- Protective gas lines for sensitive instruments
