Product Details

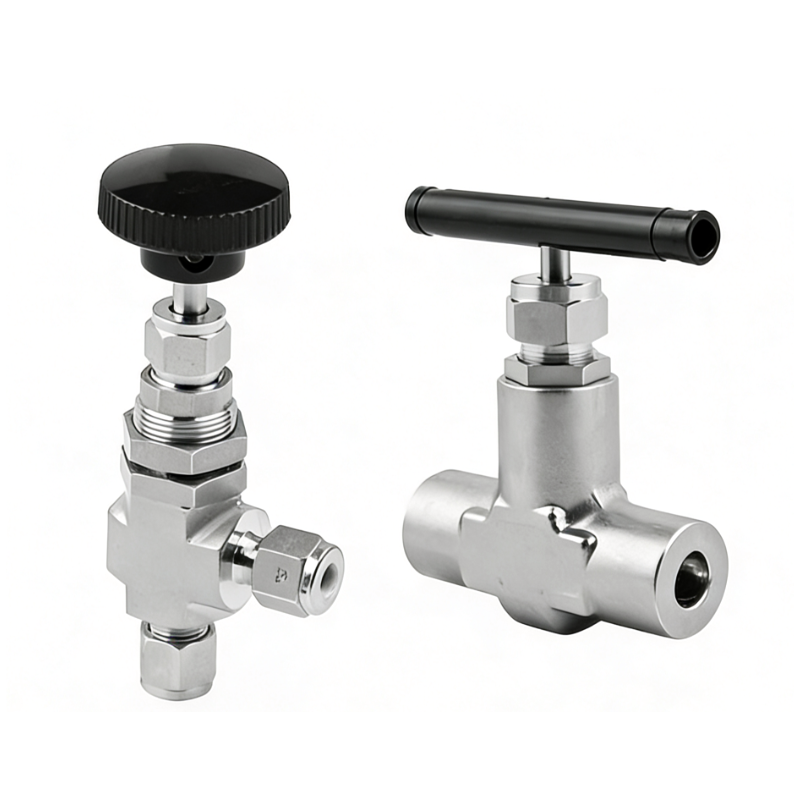

- Product Name:Forged BodyNeedleValvess
- Materialof the Valve body: CF8M,CF3M
- Inlet Size:1/8″,1/4”,3/8”,1/2”,1”,and 6 mm,8mm，10mm,12mm,14mm,16mm,18mm,20mm,22mm,25mm,28mm
- Variousend connection Types:Two ferrules fittings,NPT, BSPT,Metric Thread,BSPP, Fractional Tube Butt Weld,Metric Tube Butt Weld, Pipe Butt Weld,Pipe Socket Weld,Rotatable Fractional Tube Butt Weld,Rotatable Metric Tube Butt Weld,Rotatable Pipe Butt Weld,Male VCO Fitting,Male VCR Fitting
Features
- One-piece forged body
- Two-piece stem design:
- Upper stem thread lubricant isolated from system media
- Panel mounting available
- Steady and durable fastening of the handle by double lock-pins
- Handles of different colors available
- Every valve leak tested with nitrogen or compressed air
at 1.1 times the maximum allowable working pressure
- Normal Type Stainless steel: 6000 psig (414 bar)
Alloy C-276: 6000 psig (414 bar)
Alloy 400: 5000 psig (345 bar)
Titanium: 3500 psig (241 bar)
Brass: 3000 psig (207 bar)
High Pressure Series Stainless steel: 10000 psig (690 bar)
- Working temperature:
PTFE: -65°F to 450°F (-54°C to 232°C)
PEEK: -65°F to 500°F (-54°C to 260°C)
Graphite: -65°F to 1200°F (-54°C to 649°C)
Application:
High-pressure reaction systems in petrochemical industry
Hydrogen energy systems (hydrogen refueling, storage, and transportation)
High-pressure steam/water control systems in the power industry
High-pressure laboratory gas supply systems
Control of corrosive media (acids, alkalis)
