Product Details

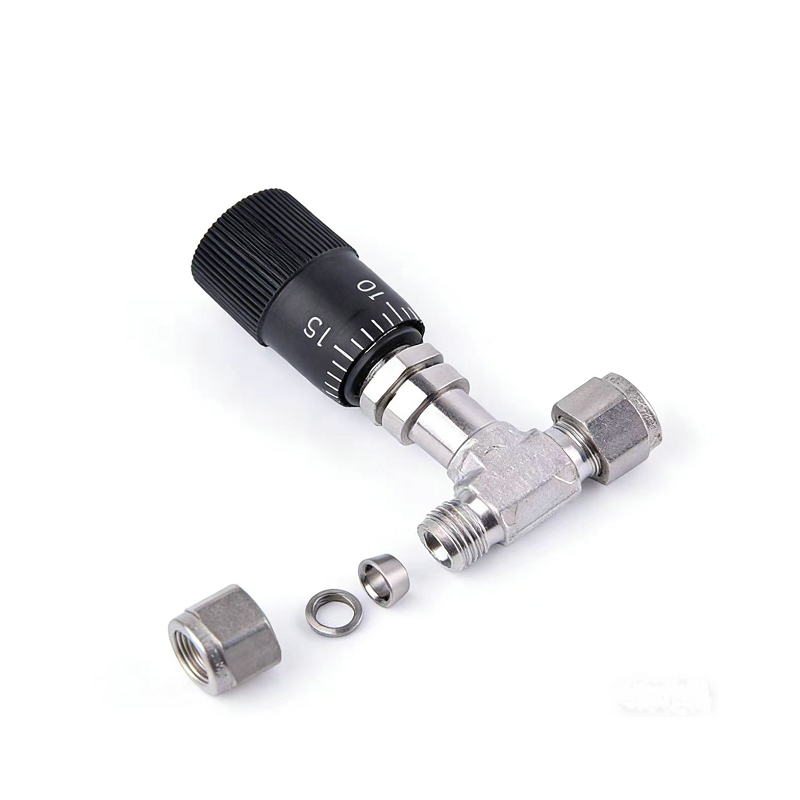

- Product Name:Low Flow Metering Valves
- Materialof the Valve body: 316，316L,304,304L,321,Brass
- End Size:1/16”,1/8”,1/4”3 mm,6mm
- Variousend connection Types:NPT,BSPT,Metric Thread,BSPP,Two Ferrules Fittings,VCR Fittings,VCO Fittings
- Handle Color:Red,Green,Blue,Orange,Yellow
Features
- Working pressure up to2000 psig (138 bar)
- Working temperature: -10F to 400F (-23C to 204C)
- Orifice size: 0.032″ (0.81 mm)
- Stem taper: 1”
- Turns to open: 9 to12
- Shutoff service: not available
- Bottom mounting available
- Variety of end connections
- Panel mountable
- Flow pattern: straight, angle, cross and double
- Handle type: knurled, vernier and slotted
- Variety of materials available for valve body
Application:
Micro Gas or Liquid Control: Such as carrier gas regulation in laboratory gas chromatographs.
Analytical Instrument Calibration: Inlet flow control for mass spectrometers and spectrometers.
Semiconductor Processes: Precise proportioning of specialty gases.
Medical Equipment: Gas flow regulation in ventilators and anesthesia machines.
Scientific Research Experiments: Micro-reaction flow control.
