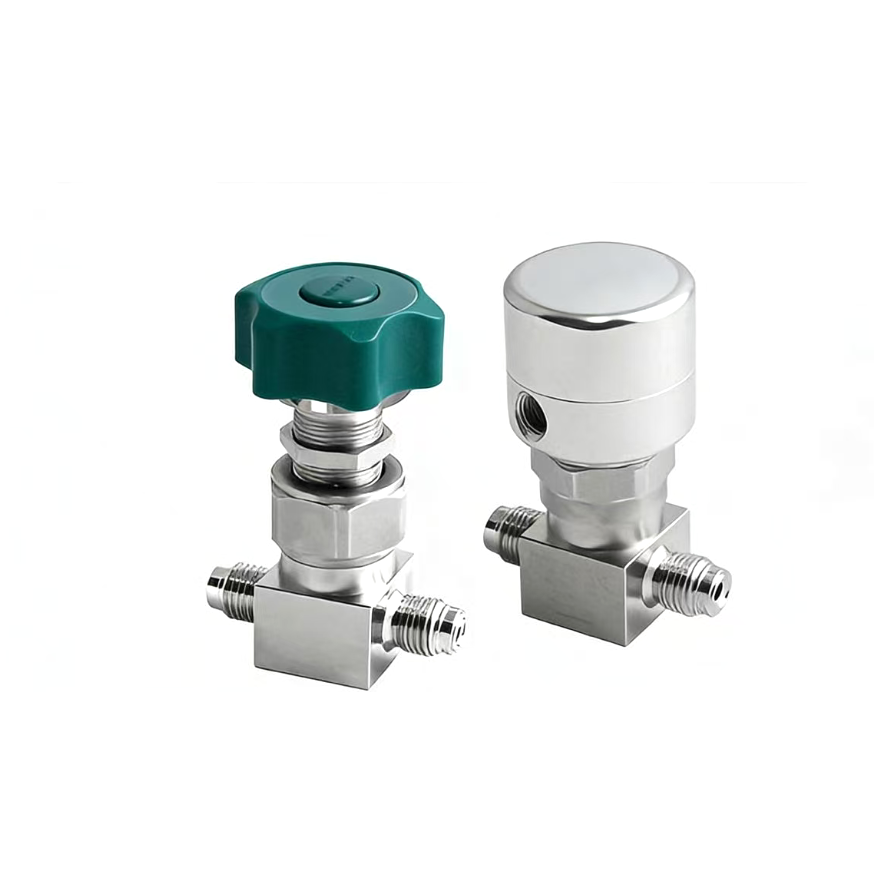

Low Pressure Bellows-Sealed Valves

Product Details

• Product Name:Low Pressure Bellows-Sealed Valves
• Materialof the Valve body: 316，316L，304，304L
• End Size:1/8”,1/4”,3/8”,1/2”,3/4”,1”and 6 mm,8mm，10mm,12mm,16mm,18mm
• Variousend connection Types:Two ferrules fittings,VCR Fittings, Fractional Tube Socket Weld,Metric Tube Socket Weld,Fractional Tube Butt Weld,Metric Tube Butt Weld,Pipe Socket Weld,Pipe Butt Weld,Rotatable Fractional Tube Butt Weld,Rotatable Metric Tube Butt Weld

Features

• Metal-to-metal gasket seal without external leakage
• Precision-formed metal bellows to ensure reliability
• Non-rotating stem tip to increase shutoff cycle life
• Manual and pneumatic actuator available
• Pneumatic actuator to rotate 360° for ease of installation
• Panel mounting and bottom mounting available
• Position sensors available assembled on normally closed pneumatically actuated valves

Application:

Semiconductor Manufacturing: Gas distribution systems, process gas control

Photovoltaic Industry: Special gas pipelines

Analytical Instruments: Gas injection and control in chromatographs, mass spectrometers

Biopharmaceuticals: High-purity media transfer, fermenter inlet gas control

Laboratory R&D: Clean, leak-free fluid control systems

Food and Beverage Industry: High-hygiene-grade media control

Panel Integration Systems: Compact installation in instrument panels and control cabinets

Automation Systems Requiring Position Feedback: Integrating position sensors for switch status monitoring
