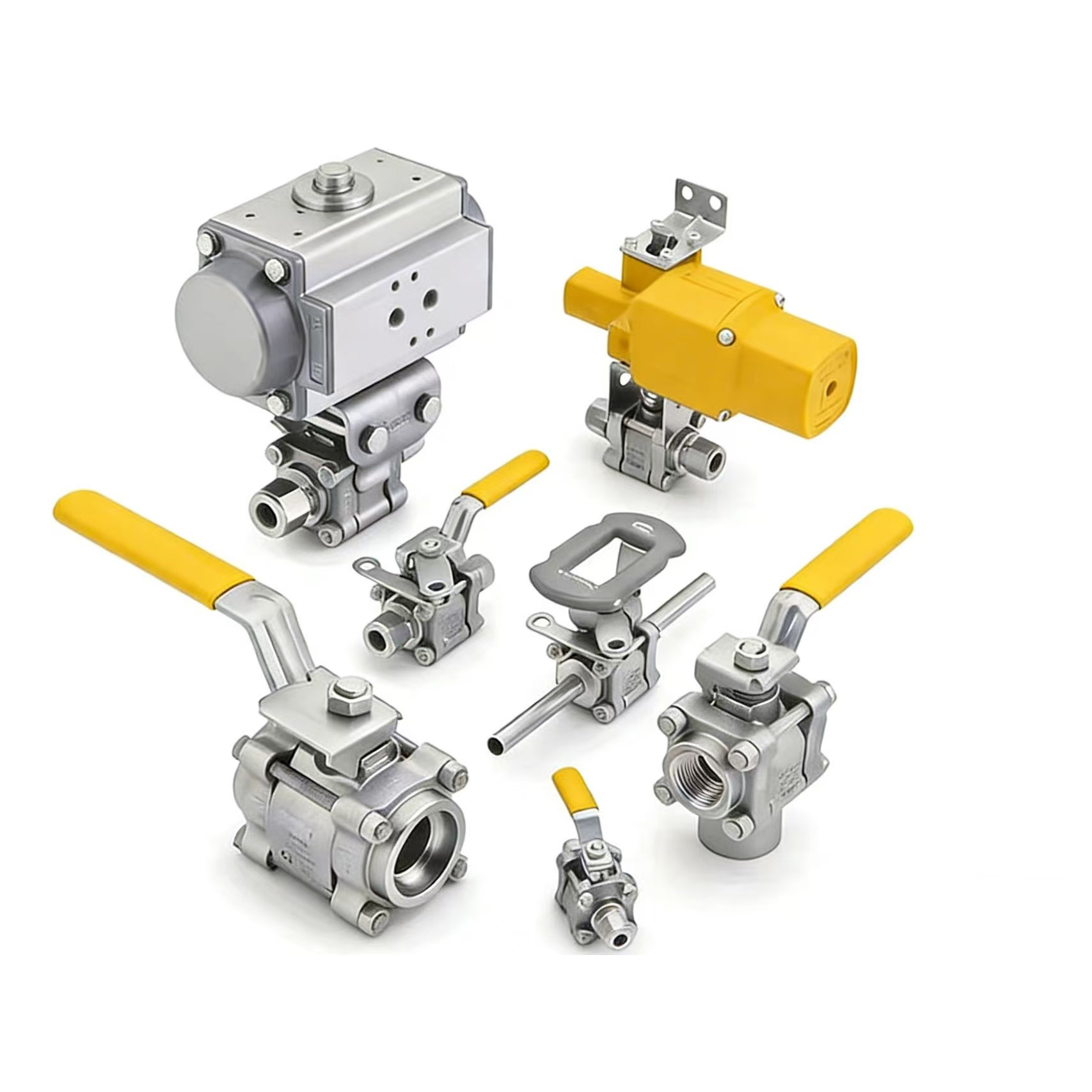

Three-Piece Process or Instrumentation Ball Valves

Product Details

• Product Name:Three-Piece Process or Instrumentation Ball Valves
• Materialof the Valve body: CF8M,CF8
• Variousend connection Types:Two ferrules fittings,NPT, BSPT,Metric Thread,BSPP, Fractional Tube Fitting,Metric Tube Fitting,Rotatable Fractional Tube Butt Weld,Rotatable Metric Tube Butt Weld,Rotatable Pipe Butt Weld,Nut + Gasket +Pipe Bulged Nipple,Male VCO Fitting,Male VCR Fitting
• End Size:1/8″,1/4”,5/16”,3/8”,1/2”,3/4”,1”,1-1/2”,2”,and 6 mm,8mm，10mm,12mm,14mm,16mm,18mm,20mm,22mm,25mm,28mm
• HandleColor:Yellow ,Red,Blue
• Working pressures up to 3,000 psig (207 bar
• Working temperature: -20°F to 450°F (-28°C to 232°C)
• Maximum-flow design with Cv up to 130
• Compact design for minimal space requirements
• Floating ball design paired with disc-spring-loadedseats to compensate for seat wear and pressure/temperature changes,improving leak-tight integrity
• Blowout-proof stem minimizes failures caused by stem movement or looseness
• Available in 2-way or 3-way flow patterns
• Each valve is factory leak-tested with nitrogen or compressed air at rated pressure
• Fire-safe ball valves available
• Low-temperature service option available

Application:

Process Pipeline Control: Used in process industries such as chemical and pharmaceutical for reliable on/off operation and isolation of corrosive or high-purity media.

Instrumentation Measurement Branch Lines: Installed upstream or downstream of instruments like pressure gauges and flow meters to facilitate calibration, maintenance, or replacement.

Equipment Interface Connection: Serves as a reliable shut-off valve at the inlet/outlet of equipment such as reactors, tanks, and pumps.

System Modular Installation: The removable center body design allows for easy integration into pipe racks, valve manifolds, or prefabricated modules.

Demanding Service Applications: Suitable for use with food, beverage, high-purity, or mildly corrosive media environments.

Main Features: Robust construction, easy maintenance, and reliable sealing, making it a versatile and critical valve in industrial processes and instrumentation.
